Home / Collections / DIMIDE 1/4 Series Clamps - Upper Pins Out Of Stock / 1/4 Series Modular Lower 400 Amp Ground Shoe

1/4 Series Modular Lower 400 Amp Ground Shoe

$25.00
| /

1/4 Series Modular Lower 400 Amp Ground Shoe

$25.00
| /
description

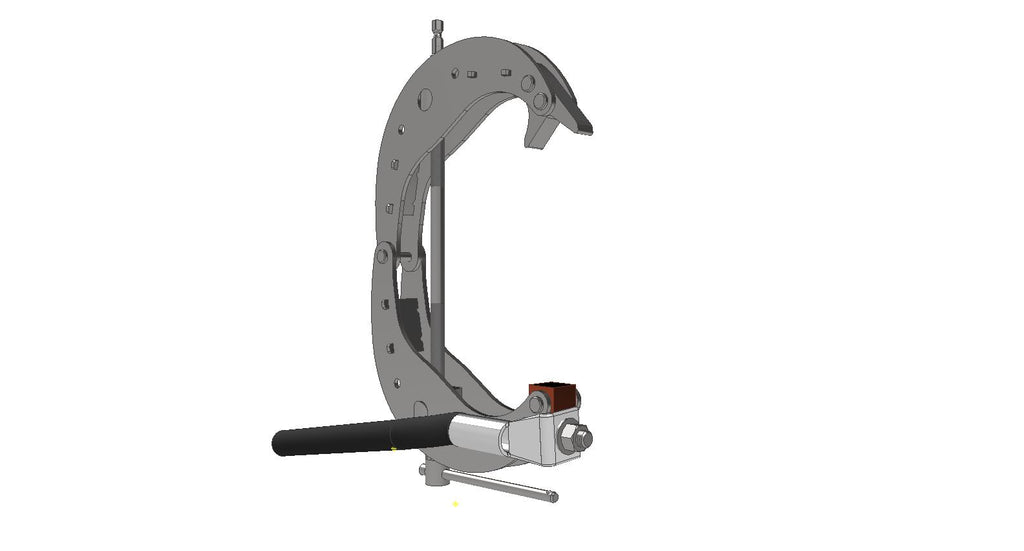

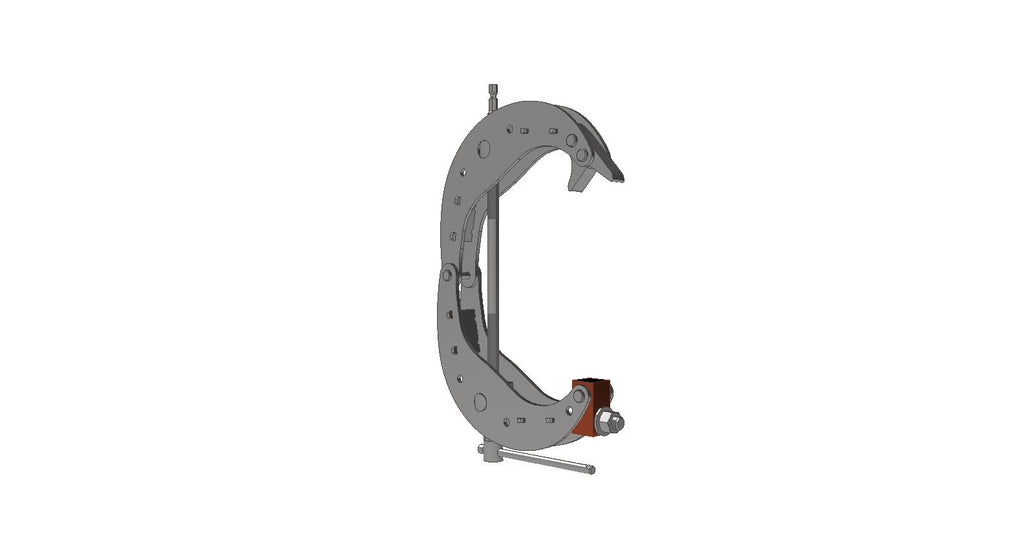

Turn your DIMIDE 1/4 Series Clamp into a top of the line ground clamp with this 400 Amp Copper Chromium ground shoe. These allow easy grounding with all the power and benefits of the 1/4 Series Clamp. High clamping force delivers an exceptional grounding contact, the clamp opening capacity allows easy ground of up to 6 Inch features, the high quality copper chromium ground shoes resists wear and tarnishing while providing exceptional electrical conductivity.

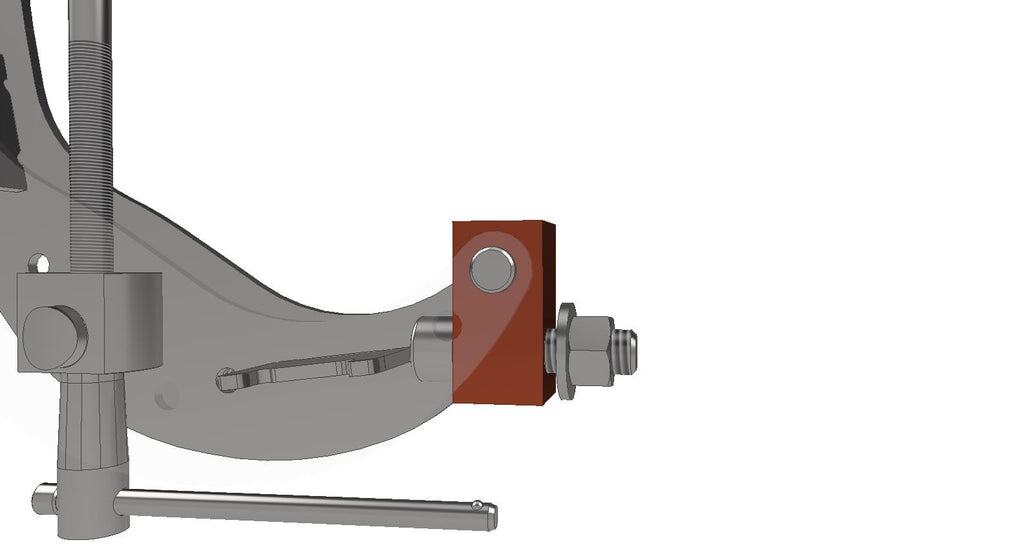

Easily attach your welding lug to the 3/8 inch bolt. Refer to your welders manual to determine your lug and cable specifications for your amperage. While this ground shoe is rated for a max of 400 Amps, it performs exceptionally well for any amperage less than 400 Amps as well.

Mount the optional cable strain relief to any of the extra 1/4" holes to easily keep the cable out of the way of your work.

Includes:

  • 400 Amp Low Ground Shoe
  • Lower Detent Pin
  • 3/8" Through bolt
  • 3/8" Nut

Note: Does NOT include 1/4 Series Clamp

Optional Hardware:

  • 1/4" Bolt & Nut
  • Zip-Tie Clip
  • High strength Zip-Tie for strain relief

Compatible With any upper modular shoes including the pipe shoe to make grounding any surface easy.
