DIMIDE HD Series #5 Clamp | Impact-Rated
DIMIDE HD Series #5 Clamp | Impact-Rated
Stop struggling tightening clamps. Get the clamp force you've always wanted without hurting your wrists. Starting getting a grip you can trust every time with ease.
Stop trading power for speed. The DIMIDE HD Series Clamp combines 10X the speed of other clamps with relentless clamping force that won't let go of your parts.
Stop cluttering up your work with countless under performing clamps. The DIMIDE HD Series Clamp allows you to confidently hold down your work with fewer clamps.
Become the boss of your parts.
Notice: Do not use with a Pneumatic Impact Wrench
VAT Note: VAT will be collected by the shipper upon delivery for international customers.
HD Series Clamp Features
No other clamp comes close to delivering the combination of speed, power, and ease of use.

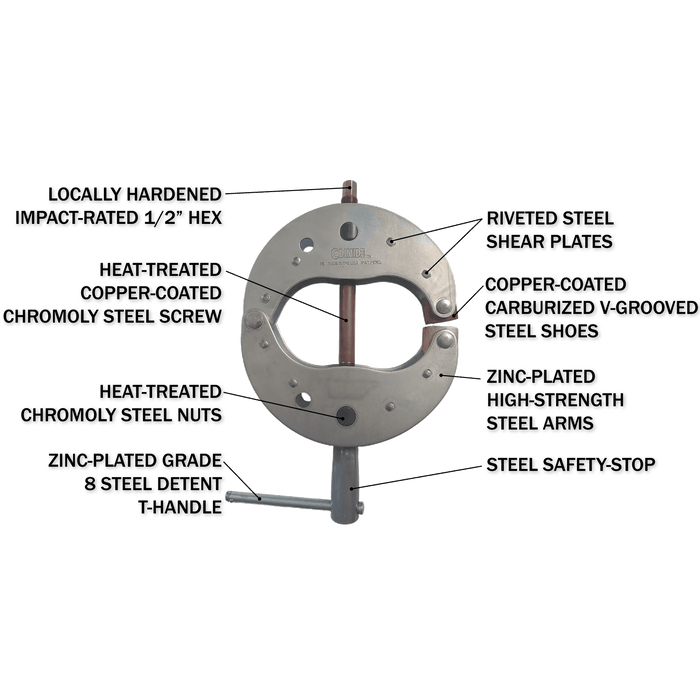

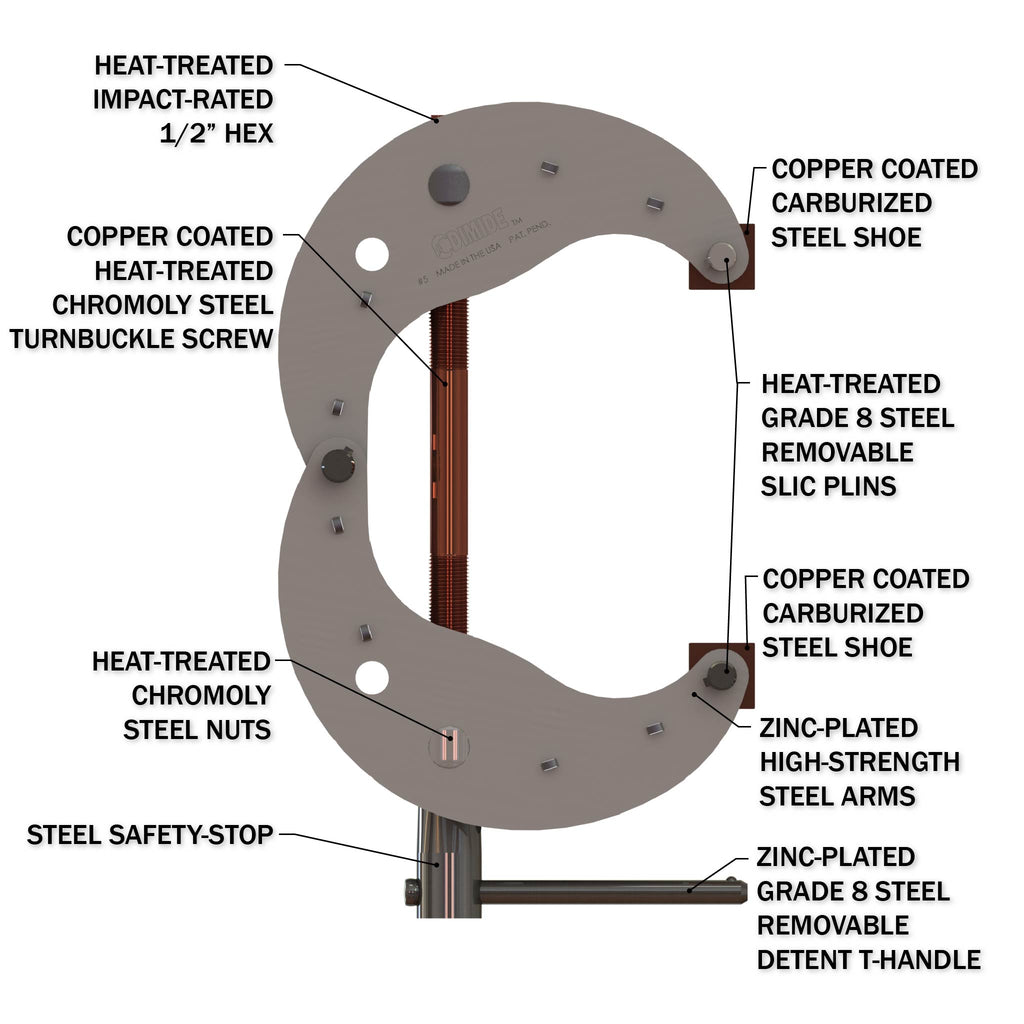

Heat-treated chromoly steel and engineered threads makes this clamp ready to handle the brute force of a 1/2 inch impact wrench. Start effortlessly clamping down with the speed and power you have always wanted.
Rapid Turnbuckle Screw

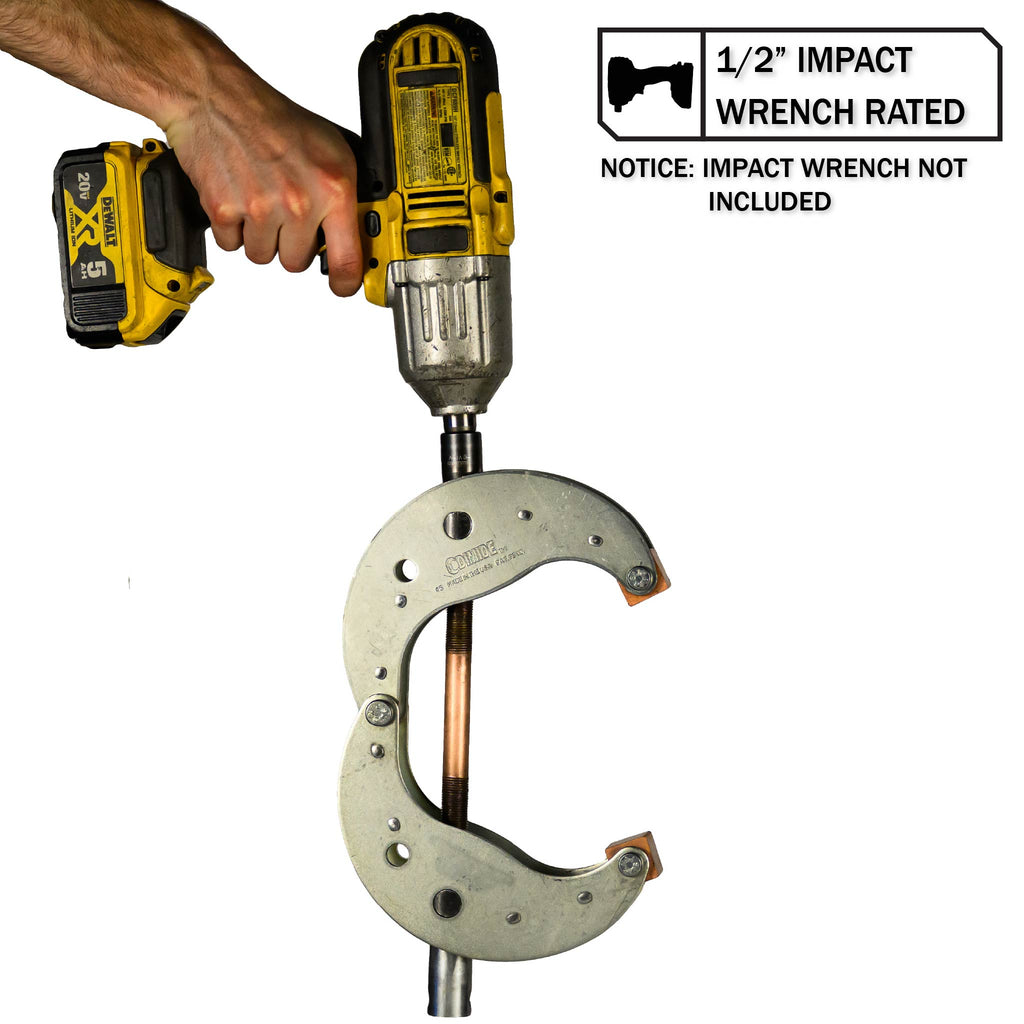

Clamp down with 10X the speed using an impact wrench or 2X the speed manually thanks to the turnbuckle design. This way you can clamp down with speed regardless of your preferred tightening method.
Weld Spatter Protection
Don't fret about weld spatter ruining your clamp. Copper coated screws and shoes ensures that weld spatter won't stick where you least want it.
Don't be limited to only clamping flat surfaces. V-grooved shoes make it easy to clamp round stock or pipe.
•Max clamping force: 7,700 pounds
•Impact wrench torque rating:
•400 foot-pounds or
•1/2" Battery Powered Impact Wrench
•Weight: 8.0 lbs

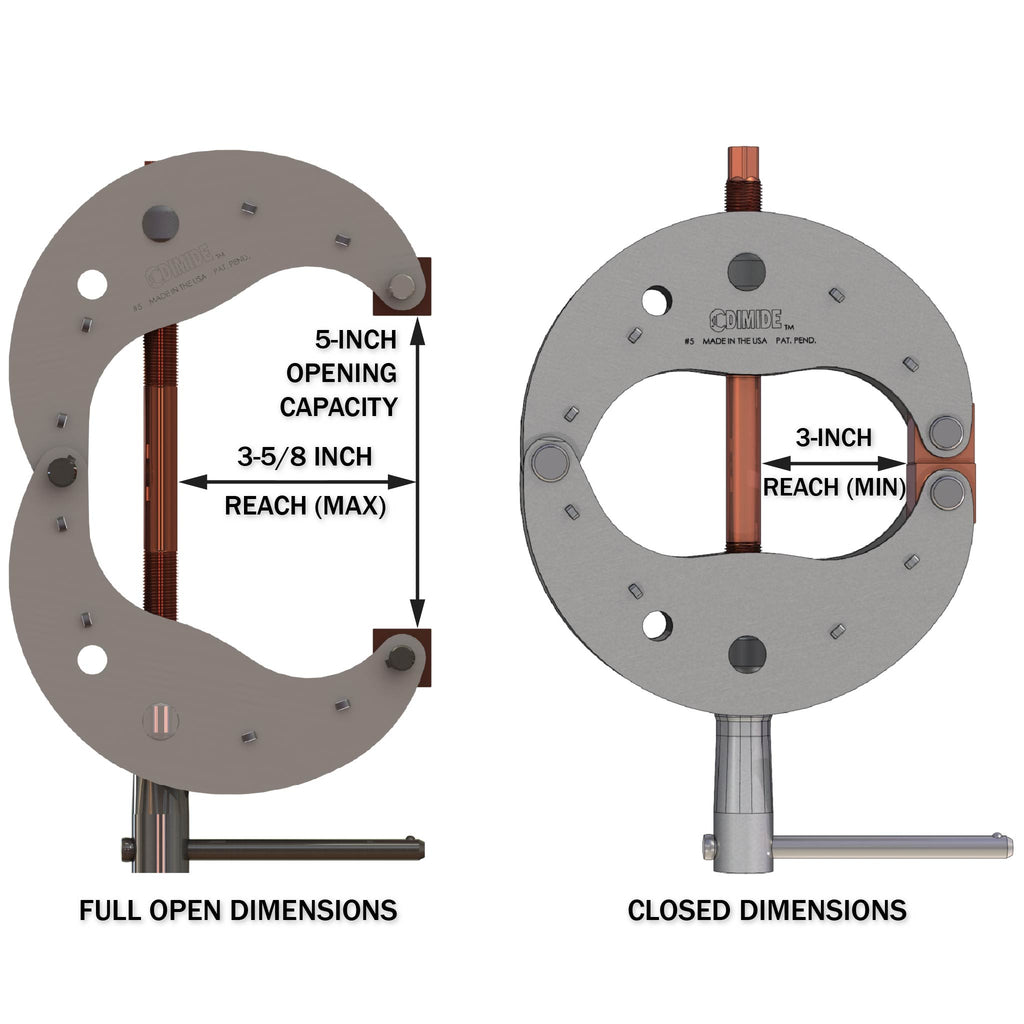

•Open Throat Depth (max): 3-5/8 Inches
•Closed Throat Depth (min): 3 Inches
•Clamp Opening Capacity: 5 Inches
•Manual torque rating: 180 foot-pounds
•Time to fully open/close when driven with an impact wrench: 2.0 seconds
Built For Your Toughest Jobs
High-strength steel alone wasn't enough to handle the demands we wanted to throw at the DIMIDE HD Series Clamp. We had to go a step further opting for a patented jaw profile, a specially engineered screw, and an abundance of additional manufacturing processes to get the strength that it takes to stand up to a lifetime of use with an impact wrench.
Needed something to bring plate edges together during fabrication. 3/8 plate. The #5 clamp with a 1/4 inch battery impact works great.
These clamps are the answer to the pain in the keester clamps that everyone has in there shop. They are fast opening and closing, they hold on like a 3 year old at a horror house. For crying out loud you get to use an impact to tighten and loosen them! That’s a star on your man card in its self! Are they more expensive then the junk at Home Depot and Lowe’s? Yes! They are built to work as hard as a border collie at the Wimbledon. These are clamps for men with hair on their chest and dirt on there boots, these ain’t made to hold your latte while you drive your Prius to your hair stylist.
All the MEN that read this should buy these clamps, because they scream iam a man! And I may need to clamp something... Really HARD!
I've walked around the shop like Bender for two days "if your happy and you know it clamp your hands" this thing is like carrying a portable shop press absolutely does to clamps what your plasma did to your torch cutting
I've only used these 2 times so far. They clamp fast and strong.
These clamps are are the real deal,I had my concerns because I never heard of the company but I made the right decision, first week of owning the no#6 series I had to put them to work on a handrail revision that was made after the rails were already welded solid,if you know anything about welding then you know the parts will pull and binde up due to the nature of the heat affected areas of the weld joint, after I cut the rails apart they were given me a hard time going back in the fixture I made,put 2 no#6 clamps on the rails and my impact driver to it and I took almost zero effort forcing them back into place to refit the end of the rails back together,I highly recommend the clamps for metal fabrication
Thank you for the great review Ronald and the awesome picture! After reading your review, I was curious if you made it a '1 star' review instead of a '5 star' review by mistake.
Thanks again for your support!
-Emmet Costen, Co-Founder
